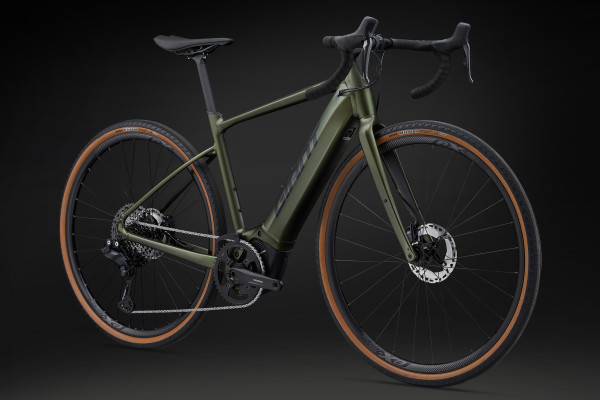

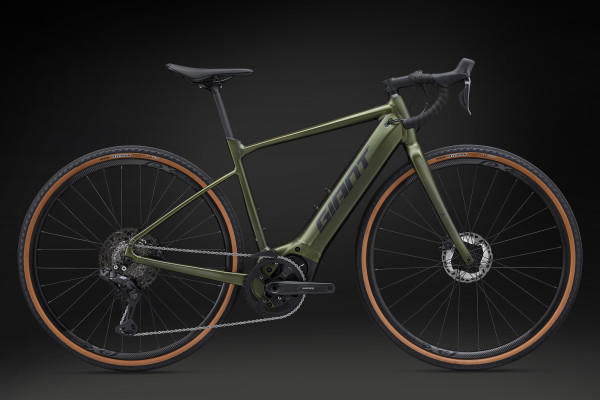

Revolt E+ 1

$6,499

What is my size?

Item # {{ partnumber.code }}

{{partnumber.supplementaryGroup.introText}} {{partnumber.supplementaryGroup.urlLabel}}

{{partnumbersByColor()[0].description}}{{partnumbersByColor()[0].globalFrameSize}}

{{partnumbersByColor()[0].priceToFormat}}

{{partnumbersByColor()[0].stock.Label}}

Ships from warehouse and will be available for pick-up in about 10-12 business days
(Does not apply to gear items. Gear orders are shipped directly to consumer).
Shipping costs: {{partnumber.shippingCosts}}

Expected in our warehouse around {{partnumber.stock.DateExpectedToFormat}}  and shipped in about 1 week{{partnumber.stock.DateExpectedToWeeks}}-{{partnumber.stock.DateExpectedToWeeks + 1}} weeks

Our Canadian warehouses will be closed from December 13th to January 2nd. While we can't ship bikes and gear during this time, your local bike shops are happy to help with all your shopping needs!

Nos entrepôts canadiens seront fermés du 13 décembre au 2 janvier. Bien que nous ne puissions pas expédier de vélos et équipements pendant cette période, vos magasins de vélos locaux seront ravis de vous aider pour vos achats!

Share

From rough roads to gravel, dirt and mixed terrain adventures, this versatile drop bar E-bike gives you the power to ride farther and faster on any route you can dream up.

Key Performance Factors

Unlimited adventure

SyncDrive Pro powered by Shimano EP6, lightweight ALUXX SL aluminum frame, smooth-riding tubeless tires and a comfortable D-Fuse seatpost give you the ability to ride any road, any route.

Powerful, integrated battery

EnergyPak Smart Compact 500 battery delivers long-distance pedaling support and is seamlessly integrated into the frame for a sleek overall profile.

System simplicity

With the press of the simple RideControl Go on/off button on the top tube, you are ready to go. The Smart Assist mode keeps you spinning without any worries. ANT+ capability further allows you to connect a bike computer of choice.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

EnergyPak 500 / SyncDrive Sport

  • Range
  • Extreme: 55 km 34 miles
  • Good: 110 km 68 miles
  • Ideal: 180 km 111 miles

Techs & Features

ALUXX Aluminum Technology
Energypak
E+ System

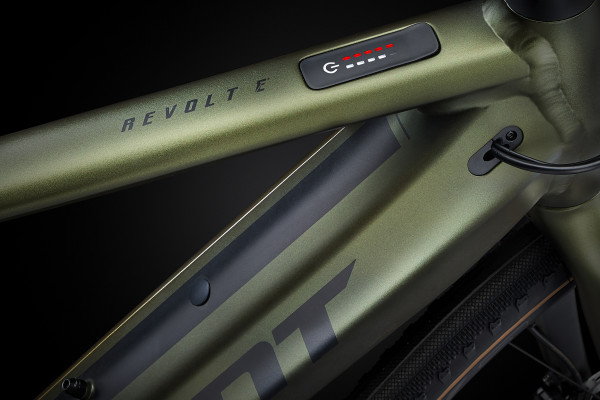

RideControl Go

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      161 cm5’3”  to 172 cm5’8”
  • M
      168 cm5’6”  to 178 cm5’10”
  • ML
      175 cm5’9”  to 185 cm6’1”
  • L
      181 cm5’11”  to 192 cm6’4”
  • XL
      189 cm6’2”  to 200 cm6’7”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMMLLXL
ASeat Tube Length (mm) (inch)45017.747518.750019.752520.755021.7
BSeat Tube Angle (degrees)73.5°73.0°73.0°73.0°73.0°
CTop Tube Length (mm) (inch)55521.955521.956522.257522.659023.2
DHead Tube Length (mm) (inch)1355.31505.91656.51807.11957.7
EHead Tube Angle (degrees)71.0°71.0°71.0°71.0°71.0°
FFork Rake (mm) (inch)502502502502502
GTrail (mm) (inch)68.82.768.82.768.82.768.82.768.82.7
HWheelbase (mm) (inch)104941.3104941.3105941.7107042.1108542.7
IChain Stay Length (mm) (inch)45517.945517.945517.945517.945517.9
JBottom Bracket Drop (mm) (inch)853.3853.3853.3853.3853.3
KStack (mm) (inch)57322.658723.160123.761524.262924.8
LReach (mm) (inch)3801537514.83811538715.239715.6
MStand Over Height (mm) (inch)74229.274729.479831.481031.983032.7
NHandlebar Width (mm) (inch)42016.544017.344017.346018.146018.1
OStem Length (mm) (inch)803.1903.51003.91104.31204.7
PCrank Length (mm) (inch)1656.51706.71706.71706.71706.7
QWheel Size 700C700C700C700C700C
Specs
  • Motor
    SyncDrive Pro, 85Nm, powered by Shimano EP600 *please note Shimano's AutoShift & FreeShift technologies are not currently compatible with this platform
  • Controller
    Mode support switch from Shimano GRX STI
  • Display
    Giant RideControl GO, frame-integrated LED consoleOptional wireless ANT+ display
  • Battery
    Giant EnergyPak 500Wh Campact, Aluminium casing with highest safety standard (EN50604), CO2 Neutral productionGiant EnergyPak Plus 250 range extender compatible
  • Sizes
    S, M, ML, L, XL
  • Colours
    Phantom Green
  • Frame
    ALUXX SL aluminum
  • Fork
    Advanced-grade composite,12x100 thru-axle

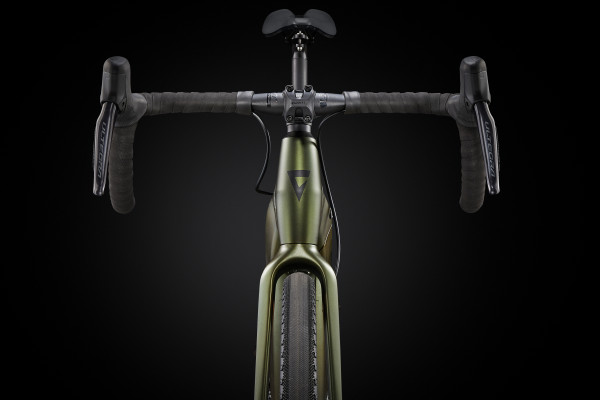

  • Handlebar
    Giant Contact XR D-Fuse 31.8 alloy 5° back sweep
  • Grips
    Velo cork tape w/ gel
  • Stem
    Giant Contact 31.8 alloy
  • Seatpost
    Giant D-Fuse SL, composite
  • Saddle
    Giant Approach
  • Pedals
    Aluminum Platform
  • Shifters
    Shimano Ultegra Di2
  • Rear Derailleur
    Shimano XT Di2
  • Brakes
    Shimano BR-R8170, hydraulic disc, 160mm [F/R]
  • Brake Levers
    Shimano ST-R8170 hydraulic disc
  • Cassette
    Shimano CS-LG700-11, 11-50T, 11-speed
  • Chain
    KMC eGlide NP/BK, e-bike optimized

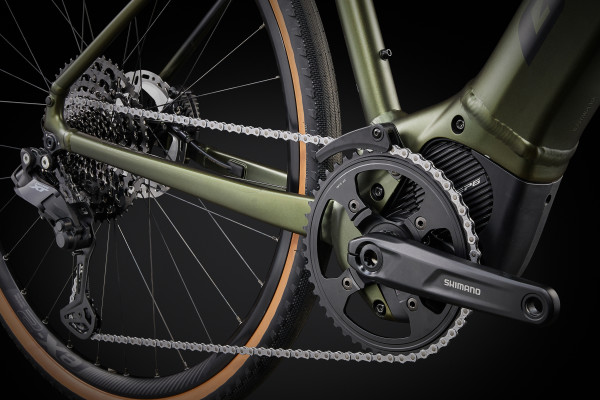

  • Crankset
    Shimano Steps E-bike SM-CRE80-R 47T alloy chainring Shimano Steps E-bike FC-EM600 crankarm 165mm [S], 170mm [M-XL]
  • Rims
    Giant eX 2, Tubeless Ready, 700c Aluminium
  • Hubs
    Giant Performance Tracker Road, Sealed Bearing
  • Spokes
    Sapim E-Lite [r] Race [f]
  • Tires
    Maxxis Receptor, EXO, 700x40c (622x40), Tubeless, w/o Reflex
  • Extras
    Tubeless kit (liquid, valves, levers, manual, tool)
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

All prices and specifications are subject to change without notice.

All prices and specifications are subject to change without notice.
